EK chain kit Suzuki DR125, SP125 (1985-2000) – 428 SR 16/53, 134 links

EK chain kit Suzuki DR125, SP125 (1985-2000) – 428 SR 16/53, 134 links

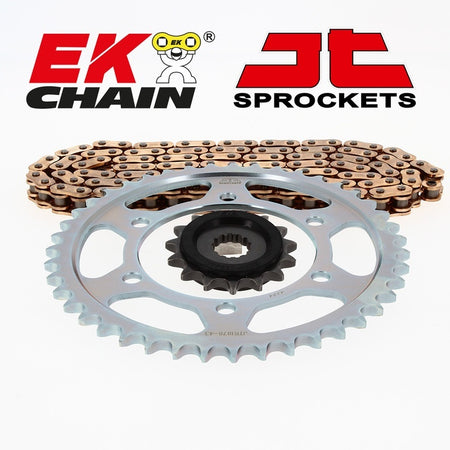

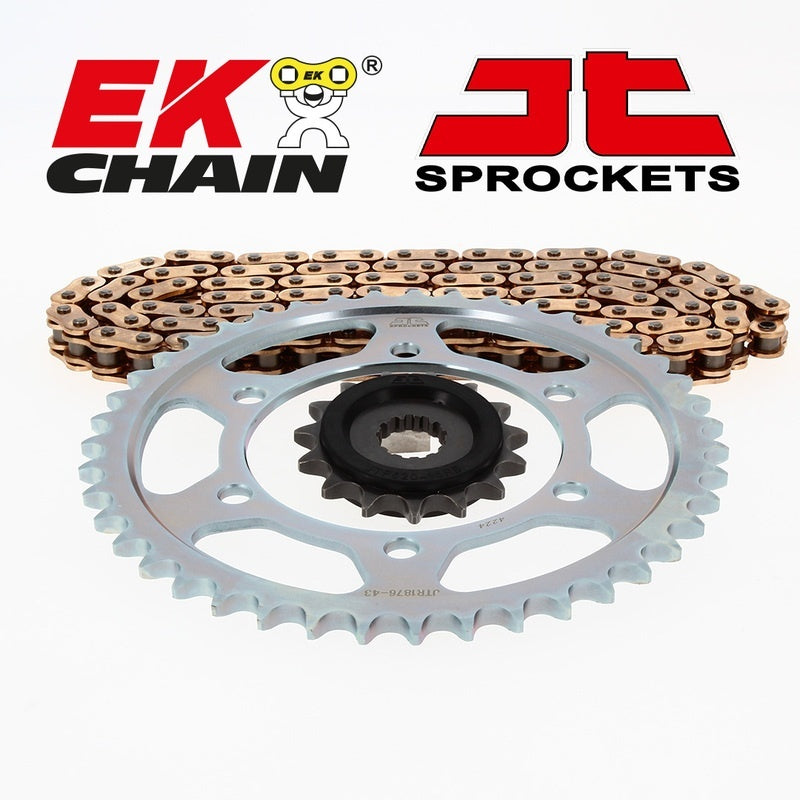

Complete EK Chain kit: a 428 SR chain (non-sealed) with 134 links, a 16-tooth front sprocket and a 53-tooth JT rear sprocket in steel. Chain and sprockets are matched, so they wear together and are replaced in one go. Intended use: road.

Fits

According to the JT Sprockets sprocket catalogue, this kit is intended for:

• Suzuki DR125 SE R/S/T/V/W/X/Y (1994-2000)
• Suzuki DR125 S Raider SF44A (1985-1994)
• Suzuki DR125 G,H,J USA (1986-1988)
• Suzuki SP125 G,H,J USA (1986-1988)

Specifications

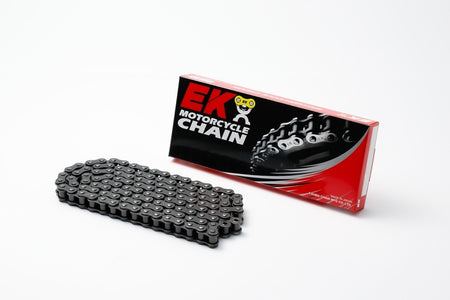

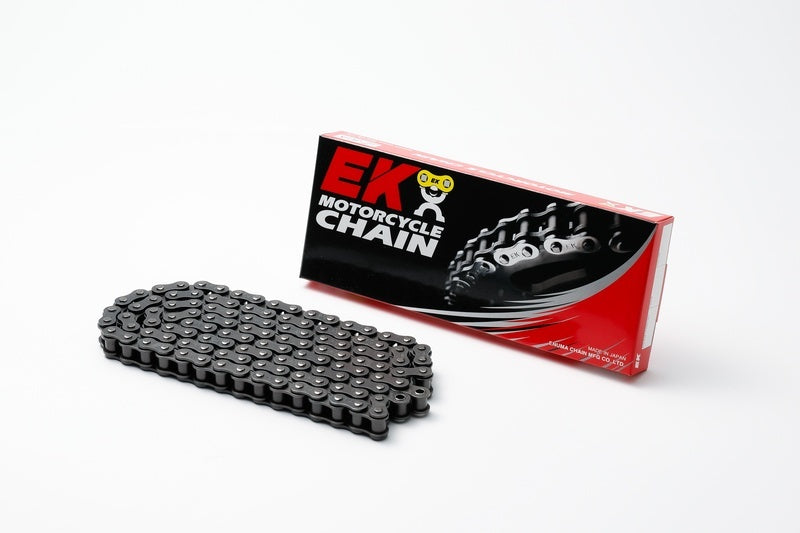

• Chain: EK 428 SR
• Pitch: 428
• Seals: non-sealed
• Grade: standard
• Number of links: 134
• Connecting link: clip link
• Chain colour: steel
• Tensile strength: 21.8 kN
• Chain weight: 1,2 kg

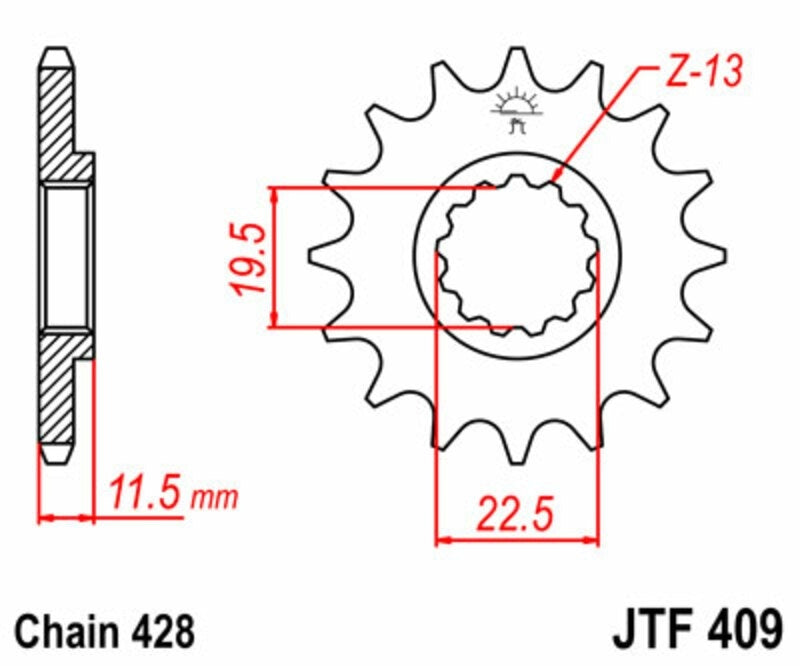

• Front sprocket: 16 teeth, standard

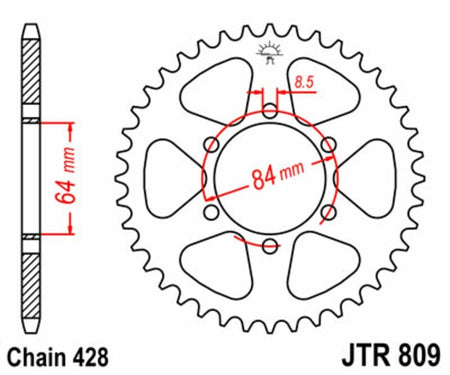

• Rear sprocket: 53 teeth, JT, steel, reinforced
• Use: road
• Part number: 3069561

Does this kit fit my bike?

Compare the pitch (428), front (16) and rear (53) tooth count and the number of links (134) with your current kit, the parts list or the workshop manual. Note: the sprockets in a chain kit are model-specific (shaft splines, bolt pattern), so kits with the same dimensions can differ between bikes. If in doubt, send us the make, model and year of your bike together with the part number of this kit.
